IoT Network Design Methodologies

Designing a network for the Internet of Things (IoT) requires a strategic approach integrating scalability, security, efficiency, and interoperability. IoT network design methodologies revolve around creating robust, flexible, and efficient networks supporting diverse devices, applications, and services. These methodologies emphasise handling large volumes of data, ensuring real-time communication, and maintaining high levels of security and reliability. This section explores the principles, methodologies, challenges, and best practices for designing IoT networks.

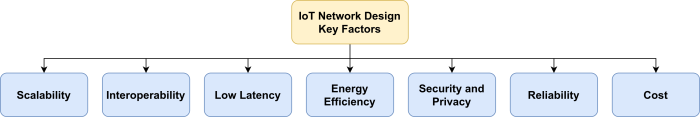

Below is a list of principles regarding IoT Network Design. Those principles vary from application to application but, in general, include (figure 1):

• Scalability: IoT networks must accommodate the addition of millions of devices without degrading performance. This includes planning for future expansion regarding devices, data traffic, and services.
• Interoperability: IoT systems often comprise devices from various vendors using different communication protocols. Designing for interoperability ensures seamless communication and data exchange.
• Low Latency: Real-time applications like autonomous vehicles or healthcare monitoring require minimal latency to ensure timely actions and responses.
• Energy Efficiency: Many IoT devices operate on battery power. Networks must minimise energy consumption to prolong device lifespans.
• Security and Privacy: IoT networks must protect sensitive data from unauthorised access, breaches, and malicious attacks through encryption, secure protocols, and access controls.
• Reliability: Networks should offer high uptime and ensure consistent performance, even during peak usage or failures.
• Cost-Effectiveness: The design should balance performance with budget constraints, ensuring efficient resource utilisation.

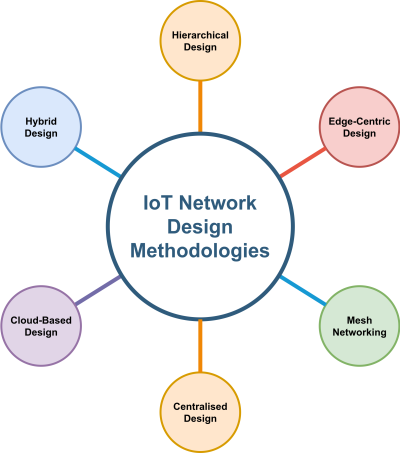

A short review of the IoT Network Design Methodologies is presented in figure 2 and described below.

1. Hierarchical Design
A hierarchical approach organises the IoT network into distinct layers, typically categorised as:

• Perception Layer (Device Layer): Includes sensors, actuators, and devices that collect data.
• Network Layer: Responsible for data transmission between devices and processing units via communication protocols.
• Application Layer: Handles data processing, storage, and service delivery to end users.

Advantages

• Simplifies management.
• Optimises resource allocation at each layer.
• Enhances scalability and modularity.

2. Edge-Centric Design
It focuses on processing data closer to where it is generated, at the network edge. Edge devices like gateways and edge servers handle computation, storage, and analysis.

Advantages

• Reduces latency for time-sensitive applications.
• Decreases data transmission costs by minimising reliance on cloud services.
• Enhances privacy by processing sensitive data locally.

3. Mesh Networking
It employs a decentralised design where devices connect directly to each other in a peer-to-peer manner. Mesh networks are often used in smart homes, industrial IoT, and smart cities.

Advantages

• High reliability due to redundant paths.
• Simplifies network expansion.
• Reduces single points of failure.

4. Centralised Design
It involves a hub-and-spoke model in which devices connect to a central controller, gateway, or server for data processing and management.

Advantages

• Simplifies monitoring and control.
• Suitable for small-scale IoT deployments.
• Centralises security measures.

5. Cloud-Based Design
Data from IoT devices is transmitted to a centralised cloud platform for processing, storage, and management. Cloud providers also offer analytics, machine learning, and application integration services.

Advantages

• Unlimited scalability and computing power.
• Simplifies data analysis and application deployment.
• Offers built-in security and redundancy.

6. Hybrid Design
It combines edge and cloud computing to leverage their benefits. Critical, low-latency tasks are processed at the edge, while large-scale analytics and storage are handled in the cloud.

Advantages

• Balances latency and scalability.
• Optimises resource utilisation.
• Enhances flexibility for diverse applications.

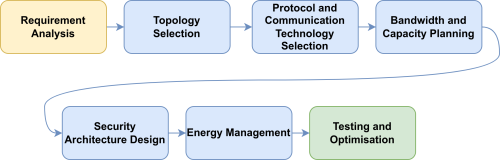

Standard design workflow for IoT Networks includes the following steps (figure 3):

1. Requirement Analysis:
Identify the purpose of the IoT system, including device types, communication needs, expected data volumes, and performance requirements.

2. Topology Selection:
Choose the most suitable topology (e.g., star, mesh, tree, hybrid) based on the use case, device distribution, and scalability needs.

3. Protocol and Communication Technology:
Select protocols and technologies for connectivity:

• Short-range: Bluetooth, Zigbee, Wi-Fi.
• Long-range: LoRaWAN, NB-IoT, LTE-M.
• Wired: Ethernet, Powerline communication.
• Hybrid: Combining short-range and long-range technologies.

4. Bandwidth and Capacity Planning
Ensure the network can handle peak data loads without performance degradation.

5. Security Architecture:

• Integrate encryption, authentication, and access control mechanisms.
• Implement intrusion detection and prevention systems (IDPS).

6. Energy Management
Design for energy efficiency using low-power communication protocols and scheduling device wake-up times.

7. Testing and Optimisation

• Conduct rigorous performance, reliability, and security testing under real-world conditions.
• Optimise the design based on feedback and test results.

IoT network design is a demanding process, and once started, is should target several challenges, including (figure 4) those presented and discussed below.

1. Device Diversity:
Supporting multiple device types, protocols, and standards is complex and may lead to compatibility issues.

2. Scalability:
Managing millions of devices and their data streams requires robust and scalable solutions.

3. Security Threats:
IoT networks are vulnerable to attacks such as DDoS, data breaches, and device hijacking. Integrating security systems into IoT networks is challenging due to hardware and networking resource constraints.

4. Latency Sensitivity:
Real-time applications demand ultra-low latency, which can be challenging in distributed environments.

5. Resource Constraints:
Balancing performance and energy efficiency for resource-constrained devices is a persistent challenge.

6. Regulatory Compliance
IoT networks must adhere to regional and industry-specific data privacy and security regulations.

Due to the complexity of the design process and the variety of approaches and options, there are some best practices as the IoT market nowadays has grown with many large and small-scale real-life use cases. Each application has its specific requirements, but some standard best practices exist as presented in figure 5 and discussed below.

1. Use Standardised Protocols:
Ensure compatibility and interoperability by adopting widely accepted standards like MQTT, CoAP, and IPv6.

2. Implement Redundancy:
Incorporate failover mechanisms and redundant pathways to enhance reliability.

3. Prioritise Security:
Encrypt data, use secure boot processes, and enforce least privilege access policies.

4. Adopt Modular Architecture
Design the network using modular components to simplify maintenance and scalability.

5. Monitor and Manage:
Deploy monitoring tools to track performance, detect anomalies, and optimise resource utilisation.

6. Optimise for Energy Efficiency:
Use low-power wireless technologies and energy-efficient hardware.

IoT technologies are closely related to the development of general ITC technologies. At the moment, significant factors driving the development of the IoT networks are discussed below and shortly presented in figure 5.

1. 5G/6G Networks: Future IoT networks will leverage 5G/6G technologies to achieve ultra-low latency, massive connectivity, and enhanced reliability.

2. AI-Driven Network Management: Artificial intelligence (AI) and machine learning (ML) are used to optimise IoT network performance and predict potential failures.

3. Blockchain for Security: Blockchain technology is increasingly used to secure IoT networks by providing immutable, decentralised record-keeping.

4. Digital Twins: Digital twins enable real-time simulation and optimisation of IoT networks, improving design and operation.

5. Fog Computing: Extending the capabilities of edge computing, fog computing processes data closer to devices, enhancing speed and efficiency.

IoT network design methodologies are critical for creating robust, scalable, and secure ecosystems that can handle the diverse demands of IoT applications. By adhering to structured methodologies and staying informed about emerging trends, organisations can build IoT networks that are efficient, reliable, and prepared for future challenges.
