Components of IoT Network Architectures

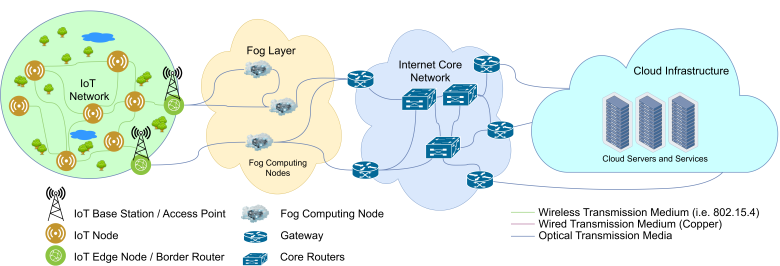

IoT Network Architecture is composed of a variety of layers, including Edge-class IoT devices such as sensors and actuators, access points enabling devices to connect to the Internet and services, fog-class devices performing preliminary data processing such as aggregation and conversion, core Internet network and finally a set of cloud services for data storage and advanced data processing. A sample model is present in figure 1.

IoT nodes are the fundamental building blocks of an IoT system, enabling the capture, processing, and transmission of data across connected devices. These nodes often operate in energy-constrained environments and are connected to an access point, which links them to the Internet, using low-power communication technologies (LPCT). These technologies enable cost-effective, reliable connectivity while adhering to the limitations of battery-operated or energy-harvesting devices. They encompass wireless access technologies at the physical layer for establishing connectivity and application layer communication protocols for managing data exchange over IP networks.

Wireless Access Technologies

Wireless access technologies are pivotal in connecting IoT devices to a network. They can be categorised into short- and long-range technologies and divided into licensed and unlicensed options. The selection of a specific technology depends on application requirements such as range, power consumption, scalability, and cost.

Short-Range Technologies

Short-range technologies are ideal for IoT applications in localised settings, such as smart homes, industrial automation, and personal devices. Examples include:

• Bluetooth/Bluetooth Low Energy (BLE): Widely used for wearables and short-range communication with mobile devices.
• ZigBee: Suitable for low-power mesh networks in home automation and smart lighting.
• Z-Wave: Popular for smart home devices due to low power consumption and ease of integration.
• IEEE 802.15.4: A foundation for standards like ZigBee and 6LoWPAN.
• Near Field Communication (NFC): Designed for very short-range communication, commonly used in payment systems and secure data transfer.

Long-Range Technologies

Long-range communication is critical for IoT applications spanning large areas, such as agriculture, utilities, and logistics. Examples include:

• LoRaWAN: A low-power wide-area network ideal for rural and remote IoT deployments.
• Sigfox: An ultra-narrowband technology suited for simple and low-data IoT applications.
• NB-IoT: A cellular-based LPWAN technology optimised for deep indoor coverage and long battery life.
• LTE-M (Cat-M1): Supports higher bandwidth IoT applications while maintaining energy efficiency.

Licensed vs. Unlicensed Technologies

• Licensed Technologies: Operate over spectrum owned by cellular operators, offering more excellent reliability and guaranteed QoS but often at higher costs.
• Unlicensed Technologies: Use publicly available spectrum (e.g., LoRaWAN, ZigBee) and are cost-effective over time. However, operators must build and maintain their infrastructure, incurring upfront capital expenditures.

Low Power Wide Area Networks (LPWAN) LPWAN technologies are transformative for IoT because they provide long-range connectivity with ultra-low power consumption. These technologies are particularly suited for large-scale deployments where devices must operate autonomously for extended periods (up to a decade) without frequent maintenance or battery replacement.

Key Benefits of LPWAN Technologies

• Wide-Area Coverage: Reliable communication over distances of several kilometres, even in challenging environments.
• Ultra-Low Power Operation: Prolonged battery life for IoT devices, minimising maintenance.
• Low-Cost Connectivity: Reduces both CAPEX and OPEX, making IoT deployments more economical.
• Scalability: Supports the connection of thousands or millions of devices in a single network.
• Acceptable Quality of Service (QoS): Sufficient for most IoT use cases, including environmental monitoring, asset tracking, and smart agriculture.

Popular LPWAN Protocols

• LoRaWAN: Leverages chirp spread spectrum for long-distance, low-power communication.
• Sigfox: Uses ultra-narrowband technology for low data rate applications.
• NB-IoT and LTE-M: Cellular-based LPWAN technologies offering enhanced indoor coverage and higher data rates.

While LPWAN protocols excel at transmitting text data, multimedia applications (e.g., images and audio) may require data compression techniques to balance bandwidth and energy efficiency. For instance, in smart agriculture, images from field cameras or audio from livestock monitoring systems might need to be compressed before transmission.

Application Layer Communication Protocols

Application layer protocols manage data exchange between IoT devices and platforms, ensuring efficient and reliable communication even in resource-constrained environments. These protocols address the limitations of traditional HTTP, offering lightweight and optimised alternatives.

Key Application Layer Protocols

1. Constrained Application Protocol (CoAP):

• A lightweight, UDP-based protocol designed for resource-constrained devices.
• Standardised by the IETF (RFC 4944 and 6282) and suitable for low-power and lossy networks.
• Employs a request-response model, enabling efficient communication between devices and servers.

2. MQTT (Message Queuing Telemetry Transport):

• A TCP-based publish-subscribe protocol ideal for IoT systems requiring real-time data exchange.
• Utilises a central message broker to distribute packets between publishers and subscribers.
• MQTT-SN (Sensor Network): A variant optimised for UDP, reducing overhead for constrained networks.

3. Advanced Message Queuing Protocol (AMQP):

• A flexible protocol designed for high-performance messaging, often used in industrial IoT systems.
• Provides robust support for message reliability and transactional operations.

4. Lightweight M2M (LWM2M):
Specifically tailored for IoT device management, enabling firmware updates, configuration, and resource monitoring.

5. UltraLight 2.0:
A minimalistic protocol designed for low-power IoT applications, focusing on reducing message size and complexity.

IoT nodes rely on advanced wireless access technologies and application layer protocols to establish seamless connectivity, optimise energy efficiency, and support diverse use cases. The selection of these technologies should align with the application's specific requirements, ensuring a balance between performance, scalability, and cost. With the rise of LPWAN and lightweight communication protocols, IoT systems are increasingly capable of supporting massive, energy-efficient deployments in various domains, from smart cities to industrial automation.

The Internet of Things (IoT) Gateway is a pivotal component in IoT ecosystems, serving as the interface between IoT devices—such as sensors, actuators, and edge nodes—and the broader network infrastructure, including cloud platforms and external data analytics systems. The gateway facilitates seamless data transmission, device management, and integration, enabling efficient communication within the IoT network. By bridging IoT nodes that cannot directly communicate with each other or the Internet, IoT gateways are vital in ensuring interoperability and scalability across diverse devices and protocols.

IoT gateways serve multiple essential functions that enhance the overall effectiveness of IoT deployments:

• Protocol Translation: Many IoT devices use diverse communication protocols, such as ZigBee, LoRaWAN, WiFi, or Bluetooth. The gateway standardises this data into formats compatible with the broader network, ensuring interoperability.
• Data Aggregation: Gateways collect data from multiple devices, combining and preprocessing it to reduce bandwidth consumption and streamline cloud integration.
• Edge Computing: By performing local computations, such as filtering, analytics, or decision-making, gateways reduce latency and alleviate the workload on cloud infrastructure.
• Security Management: Gateways act as a security checkpoint, encrypting data and ensuring secure communication between devices and the cloud.
• Device Management: They facilitate remote monitoring, configuration, and firmware updates for connected devices, enabling efficient maintenance.

Hardware Solutions for IoT Gateway nodes

IoT gateways often rely on resource-constrained, cost-effective computing devices that provide sufficient processing power while maintaining energy efficiency. Examples include:

• Raspberry Pi: A versatile and affordable option for IoT gateway implementations, capable of running lightweight operating systems and software for data aggregation, preprocessing, and communication.
• Orange Pi: Similar to Raspberry Pi, it offers flexibility and affordability and is suitable for edge computing tasks and IoT connectivity.
• NVIDIA Jetson Nano Developer Kit: This is a more powerful solution for applications requiring edge AI and machine learning. It enables advanced analytics and real-time decision-making at the gateway level.
• BeagleBone Black: Known for its robustness, it is often used in industrial IoT applications.

These devices can run lightweight algorithms to perform local data processing, real-time analytics, and storage, minimising the dependency on cloud resources. Additionally, they can support multiple protocols, making them highly adaptable to various IoT deployment scenarios.

The Role of Edge Computing in IoT Gateway Nodes

IoT gateways equipped with edge computing capabilities significantly enhance the performance and efficiency of IoT networks:

• Reduced Latency: Local processing enables real-time decision-making, which is critical for time-sensitive applications such as healthcare or industrial automation.
• Bandwidth Optimisation: Gateways reduce the overall network load by filtering and aggregating data before transmission to the cloud.
• Enhanced Security: Localised data processing limits the exposure of sensitive information to external threats.
• Autonomous Operation: In environments with intermittent connectivity, gateways with edge computing can function autonomously, ensuring uninterrupted operations.

Smart IoT Solutions with Gateway Nodes

IoT gateways pave the way for scalable, adaptable, and energy-efficient IoT deployments. They act as enablers for diverse applications, including:

• Smart Agriculture: Gateways using LoRaWAN or Sigfox provide connectivity to remote sensors, monitoring soil moisture, weather conditions, and livestock health.
• Smart Cities: WiFi-enabled gateways support high-speed communication for smart lighting, traffic management, and public safety systems.
• Healthcare IoT: Gateways integrated with BLE or WiFi connect wearable devices to centralised systems for real-time patient monitoring and diagnostics.
• Industrial IoT (IIoT): Gateways facilitate predictive maintenance and process optimisation by connecting sensors in manufacturing or logistics environments.

IoT gateways are indispensable for creating seamless, secure, and efficient IoT networks. By bridging diverse devices, translating protocols, and enabling edge computing, these gateways ensure the scalability and functionality of IoT solutions across industries. Their integration with modern wireless technologies and edge devices makes them a cornerstone for the growing adoption of IoT in real-world applications.

In the rapidly expanding Internet of Things (IoT) landscape, fog and edge computing nodes play a critical role in bridging the gap between IoT devices and centralised cloud computing infrastructure. These nodes decentralise data processing, bringing computational resources closer to the source of data generation, enhancing responsiveness, reducing latency, and alleviating the load on cloud data centres. While “fog computing” and “edge computing” are often used interchangeably, they have distinct scopes. Fog computing is a broader architecture integrating processing at intermediate layers, such as gateways or local servers. In contrast, edge computing focuses on computations directly at or near the device level. These approaches offer a synergistic framework for efficient, real-time, and scalable IoT systems.

Key Characteristics of Fog and Edge Computing

1. Decentralised Processing:
Fog and edge nodes process data locally or in close proximity to IoT devices, minimising the need for constant communication with cloud servers.

2. Layered Architecture:

• Edge Computing: Processing occurs at or near the data source, such as within sensors, cameras, or IoT-enabled machinery.
• Fog Computing: Adds an intermediary layer where routers, gateways, or local servers perform more advanced tasks, such as data aggregation, filtering, and lightweight analytics.
• Real-Time Capability: Localised processing enables low-latency responses, which is essential for critical applications like autonomous vehicles, healthcare systems, and industrial automation.

Advantages of Fog and Edge Computing

1. Reduced Latency
Traditional cloud computing involves data transmission over long distances, leading to delays. Fog and edge nodes address this issue by processing data closer to the source, ensuring faster response times critical for real-time applications such as:

• Industrial Automation: Real-time anomaly detection and predictive maintenance.
• Autonomous Vehicles: Rapid decision-making for navigation and safety.
• Healthcare Monitoring: Immediate alerts for abnormal patient data from wearable devices.

2. Bandwidth Optimization
By preprocessing data locally, fog and edge nodes minimise the volume of raw data sent to the cloud, reducing bandwidth consumption and associated costs. For instance:

• In smart agriculture, edge devices filter environmental data, sending only essential metrics to the cloud for long-term analysis.
• In smart cities, local fog nodes manage traffic data, sending summarised insights to centralised systems.

3. Enhanced Scalability
Decentralising computational tasks allows IoT networks to scale efficiently without overwhelming cloud infrastructure. Fog computing enables a hierarchical distribution of workloads, supporting vast IoT deployments in industries like energy, transportation, and logistics.

4. Improved Security and Privacy
Localised data processing reduces exposure to cyber threats during data transmission. Additionally, sensitive data can remain within predefined geographical boundaries to comply with regulations such as GDPR (General Data Protection Regulation).

5. Resilience in Intermittent Connectivity
In scenarios with unreliable continuous cloud access, fog and edge nodes ensure autonomous operations by performing critical tasks locally.

Use Cases for Fog and Edge Computing 1. Industrial IoT (IIoT):

• Real-time monitoring and control of manufacturing equipment.
• Predictive maintenance to prevent costly downtime.

2. Smart Cities:

• Traffic management using local sensors and cameras to optimise flow and reduce congestion.
• Distributed energy management for power grids.

3. Healthcare:

• Continuous monitoring of patients with wearable devices.
• Localised data analysis for faster diagnosis and intervention.

4. Autonomous Systems:

• Drones for delivery and surveillance.
• Vehicles with edge-enabled sensors for real-time navigation and obstacle avoidance.

5. Agriculture:

• Precision farming using environmental sensors.
• Crop health monitoring with drone-mounted edge devices.

Fog Computing and Artificial Intelligence (AI)

Integrating artificial intelligence (AI) with fog computing enhances the capabilities of IoT systems by enabling real-time analytics and decision-making at the edge.

AI-Enabled Fog Nodes:

• Perform localised data analysis using lightweight AI models.
• Support inferencing tasks like object detection at the edge to avoid latency from cloud-based AI processing.

Distributed AI Processing:

• Fog nodes handle intermediate tasks like preprocessing and feature extraction, while cloud servers perform more computationally intensive AI training.
• This hierarchical distribution ensures efficient utilisation of resources across the network.

Examples

• Smart Retail: AI-enabled fog nodes analyse customer behaviour in-store, providing personalised recommendations without cloud dependency.
• Energy Management: Predictive analytics performed locally to optimise energy distribution in real-time.

Technologies Enabling Fog and Edge Computing

1. Hardware Solutions:

• Raspberry Pi: Affordable, energy-efficient computing for edge processing.
• NVIDIA Jetson Nano: Edge AI for applications requiring advanced analytics.
• Edge Servers: High-performance devices for fog computing in industrial environments.

2. Software Frameworks:

• Kubernetes at the Edge: Manages containerised applications across fog and edge nodes.
• OpenFog Consortium Standards: Ensures interoperability and scalability.

3. Networking Protocols:

• MQTT and CoAP: Lightweight communication protocols optimised for edge environments.
• 5G Networks: Enhances connectivity for mobile fog and edge nodes, supporting high-speed, low-latency communication.

Future Trends in Fog and Edge Computing

1. Integration with 5G: The rollout of 5G networks will further enhance fog and edge computing by providing high-speed, low-latency communication, supporting advanced use cases like AR/VR and autonomous systems.

2. Edge AI Innovations: Continued development of efficient AI models for edge devices will expand their capabilities, enabling predictive maintenance, fraud detection, and environmental monitoring applications.

3. Decentralised Architectures: Blockchain technology may be integrated with fog and edge nodes to ensure secure, tamper-proof data processing and storage.

4. Green Computing Initiatives: Energy-efficient hardware and renewable energy integration will drive sustainable fog and edge solutions.

Fog and edge computing represent transformative advancements in IoT system architecture, addressing the limitations of traditional cloud-centric models. By bringing computational resources closer to data sources, these approaches enable real-time analytics, reduce bandwidth requirements, and improve system reliability. As IoT deployments continue to grow in complexity and scale, the adoption of fog and edge computing will be instrumental in achieving responsive, secure, and efficient solutions across industries. With advancements in AI, 5G, and edge hardware, the future of fog and edge computing promises even greater integration and innovation.

Internet core networks are the backbone of the Internet of Things (IoT), enabling seamless connectivity and data exchange between billions of devices and cloud computing platforms. These networks are integral to the operation of IoT systems, ensuring the reliable transmission of vast amounts of data generated by interconnected sensors, actuators, and devices, collectively called IoT nodes.

IoT nodes capture and generate significant data volumes that need to be processed to extract actionable insights. This data journey involves two key communication paths:

• Uplink: Data flows from IoT nodes to the cloud for processing and analysis.
• Downlink: Processed data, insights, control commands, or feedback are transmitted back to IoT nodes for execution.


This bidirectional communication underpins critical IoT applications, such as smart cities, industrial automation, healthcare systems, and autonomous vehicles. These applications rely on low-latency and high-throughput networks to support real-time responsiveness and data-driven decision-making, making the role of core networks indispensable.

Challenges in Handling IoT Traffic over Core Networks
While internet core networks provide essential connectivity for IoT systems, the exponential growth in IoT devices introduces unique challenges that must be addressed to ensure reliable, secure, and efficient operations.

1. Security Vulnerabilities
Transiting vast amounts of IoT data over core networks exposes the ecosystem to heightened cyber-attack risks. Common threats include:

• Data Interception: Unauthorised entities accessing sensitive information during transmission.
• Distributed Denial-of-Service (DDoS) Attacks: Disrupting network services by overwhelming them with malicious traffic.
• Unauthorised Access: Exploiting weak authentication to control IoT devices.

To mitigate these risks, robust security measures are essential:

• End-to-end Encryption: Ensures data confidentiality during transmission.
• Secure Authentication Protocols: Protect against unauthorised access.
• Continuous Network Monitoring: Identifies and neutralises threats in real-time.

Without comprehensive security frameworks, IoT systems are vulnerable to breaches, data theft, and operational disruptions, which could compromise safety and reliability.

2. Maintaining Quality of Service (QoS)
The massive volume of IoT traffic places immense pressure on core networks, potentially leading to:

• Congestion: Overloaded network pathways.
• Latency Issues: Delays in data transmission and processing.


Even minor QoS degradation can result in severe consequences for applications such as autonomous vehicles, industrial automation, and telemedicine, including operational failures or safety hazards.

Solutions for QoS Optimisation:

• Traffic Prioritisation Mechanisms: Assign higher priority to time-sensitive data.
• Dynamic Network Optimisation: Use intelligent routing to reduce bottlenecks.
• Adaptive Bandwidth Allocation: Scale resources based on traffic demands.


By ensuring consistent QoS, core networks can meet the stringent demands of real-time IoT applications.

3. Energy Consumption
The continuous transmission and processing of IoT data across core networks require substantial energy resources, contributing to:

• High Operational Costs: Increasing expenditure for network providers.
• Environmental Impact: Elevated carbon emissions from energy-intensive processes.

Strategies for Sustainable Energy Management:

• Energy-Efficient Network Equipment: Reduce power consumption without compromising performance.
• Optimised Data Routing: Minimise transmission distance and energy usage.
• Edge Computing Integration: Process data closer to its source, reducing the load on core networks and conserving energy.


Adopting these strategies helps balance operational demands with environmental responsibility, paving the way for greener IoT infrastructures.

4. Network Management Complexity
The dynamic and large-scale nature of IoT traffic introduces significant challenges in network administration, such as:

• Coordinating Diverse Data Flows: Managing the simultaneous transmission of varied IoT data.
• Load Balancing: Distributing network traffic to prevent overloads.
• Scaling Resources: Adapting to the growth of IoT devices and applications.


Traditional network management approaches often fall short of addressing these complexities. Advanced solutions include:

1. Software-Defined Networking (SDN):

• Centralised Control: Decouples network control from hardware, enabling flexible and automated management.
• Dynamic Configuration: Adapts routing paths to optimise traffic flow.

2. Network Function Virtualisation (NFV):

• Virtualised Network Functions: Replace hardware-based functions with software, allowing rapid scaling and efficient resource utilisation.
• Cost Reduction: Decreases reliance on expensive, dedicated hardware.


Together, SDN and NFV enhance agility, scalability, and resilience, making them indispensable tools for managing complex IoT ecosystems.

The Future of Core Networks in IoT The rapid expansion of IoT networks demands continuous innovation in core network technologies. Future advancements are likely to focus on:

1. 5G and Beyond

• Low Latency: Essential for real-time applications such as autonomous vehicles and industrial automation.
• High Bandwidth: Supports massive IoT deployments with diverse traffic profiles.

2. AI-Driven Network Management

• Predictive Analytics: AI can anticipate traffic patterns and optimise routing proactively.
• Self-Healing Networks: AI-enabled systems can detect and resolve issues autonomously, reducing downtime.

3. Blockchain for Secure IoT Communication

• Tamper-proof Transactions: Blockchain ensures the integrity of data during transmission.
• Decentralised Security: Reduces reliance on centralised servers, mitigating single points of failure.

4. Green Networking Initiatives

• Renewable Energy Integration: Powering network nodes with solar or wind energy.
• Energy-Aware Protocols: Dynamically adjust network operations to conserve energy.

Internet core networks are the lifeline of IoT ecosystems, enabling seamless data transmission and real-time responsiveness across diverse applications. However, the rapid growth of IoT introduces challenges, including security vulnerabilities, QoS maintenance, energy consumption, and network management complexities.

Core networks can meet the evolving demands of IoT systems by adopting advanced technologies such as SDN, NFV, edge computing, and AI-driven management and implementing robust security measures and energy-efficient practices. These innovations will ensure a sustainable, secure, and efficient future for IoT, driving transformative advancements across industries in an increasingly connected world.

IoT devices are typically constrained by limited computational power and memory, so they rely heavily on cloud data centres for advanced analytics and data storage. IoT cloud computing represents the intersection of cloud technology and the rapidly expanding Internet of Things (IoT) domain, offering a robust framework for processing and managing the massive data streams of IoT devices.

Cloud computing has transformed IT operations, providing unparalleled advantages in cost-effectiveness, scalability, and flexibility. When combined with IoT, these benefits are amplified, enabling seamless access to a broad array of computing resources—ranging from software to infrastructure and platforms—delivered remotely over the Internet. This integration allows IoT devices to connect to cloud environments from virtually any location, enabling real-time data processing, efficient resource management, and dynamic scalability.

By leveraging cloud computing, organisations can minimise the complexities and financial burdens of maintaining on-premises IT infrastructure. This capability accelerates the deployment of IoT solutions and reduces costs, empowering businesses to focus on innovation and growth rather than infrastructure management.

Key Benefits of IoT Cloud Computing

1. Cost Reduction and Resource Optimisation
One of the primary advantages of IoT cloud computing is the significant cost savings it offers by eliminating the need for extensive physical infrastructure. Traditionally, organisations had to invest heavily in on-premises data centres, incurring substantial costs related to hardware procurement, maintenance, security, and periodic upgrades.

Cloud computing shifts these responsibilities to service providers, who manage the infrastructure on behalf of users. This model reduces capital expenditure and operational costs, freeing up financial and human resources. For small and medium-sized enterprises (SMEs), this shift is particularly transformative, granting access to cutting-edge computing resources that were previously unaffordable.

Additionally, the pay-as-you-go model of cloud services ensures that organisations only pay for the resources they use, enabling efficient cost management and scaling.

2. Enhanced Security and Data Management
Cloud computing enhances data security by leveraging the expertise of leading service providers, who implement advanced measures to protect data and applications from cyber threats. Key security features include:

End-to-End Encryption: Protects data during transmission and storage. Regular Updates and Patches: Ensures systems are safeguarded against emerging vulnerabilities. Robust Authentication Mechanisms: Prevents unauthorised access. By outsourcing security to cloud providers, organisations can achieve a level of protection that would be costly and complex to maintain independently.

Furthermore, cloud platforms offer scalable and flexible storage solutions to accommodate the dynamic data volumes generated by IoT devices. Automated maintenance and updates ensure consistent performance and reduce the risk of downtime or data loss.

3. Accelerating IoT Application Development
IoT cloud computing provides developers with a robust ecosystem of tools, frameworks, and services that streamline application development. This environment allows for:

• Rapid Prototyping and Deployment: Developers can quickly create, test, and launch IoT applications.
• Infrastructure-Free Development: Eliminates the need to manage physical servers, enabling developers to focus on functionality and innovation.
• Enhanced Collaboration: Cloud platforms support real-time collaboration, allowing teams to work together from different locations.


These advantages lead to faster rollout times for IoT applications and foster continuous innovation.

4. Support for IoT-Specific Cloud Platforms
The rise of IoT has driven the development of cloud platforms tailored to the unique demands of IoT systems. Popular platforms such as Microsoft Azure IoT Suite, Amazon AWS IoT, and DeviceHive offer comprehensive services, including:

• Device Management: Streamlining the onboarding, configuration, and monitoring of IoT devices.
• Real-Time Data Processing: Analysing data as it is generated for actionable insights.
• Advanced Analytics: Supporting predictive analytics, machine learning, and AI-driven decision-making.
• Application Hosting: Providing a reliable environment for deploying IoT solutions.


These platforms enable businesses to implement IoT solutions quickly and cost-effectively, eliminating the need for extensive in-house infrastructure while maintaining flexibility and scalability.

Strategic Advantages of IoT Cloud Integration

The integration of IoT and cloud computing extends beyond cost efficiency and operational convenience, offering strategic benefits that drive business transformation:

1. Real-Time Insights:
Cloud-based analytics enable organisations to process and act on IoT data in real-time, improving decision-making and responsiveness. For example, in industrial automation, real-time data can predict equipment failures and trigger preventive actions, minimising downtime and costs.

2. Enhanced Operational Efficiency:
Cloud-based IoT platforms optimise workflows by automating repetitive tasks, streamlining processes, and improving resource allocation. For instance, smart city systems use cloud analytics to manage traffic flow, reduce energy consumption, and respond to emergencies more effectively.

3. Scalability for Growing IoT Ecosystems:
Cloud platforms are inherently scalable, allowing businesses to expand their IoT deployments without the need for additional physical infrastructure. This scalability supports long-term growth and adapts to fluctuating demands.

4. Innovation Enablement:
Cloud computing reduces the burden of infrastructure management, freeing up resources for innovation. It enables businesses to explore new IoT use cases and develop next-generation applications.

The Future of IoT Cloud Computing

As IoT continues to expand, the role of cloud computing will grow increasingly pivotal in supporting its evolution. Emerging trends and technologies shaping the future of IoT cloud computing include:

• Edge and Fog Computing Integration: Combining edge computing with cloud infrastructure to process data closer to its source, reducing latency and bandwidth usage.
• AI-Driven IoT Analytics: Leveraging artificial intelligence to extract deeper insights from IoT data and enable predictive and prescriptive analytics.
• Serverless Architectures: Facilitating cost-effective, on-demand resource utilisation for IoT applications.
• Blockchain for IoT Security: Ensuring data integrity and secure transactions across IoT networks.

IoT cloud computing is a cornerstone of the modern IoT ecosystem, providing the scalability, flexibility, and efficiency needed to manage the massive data volumes generated by connected devices. By reducing costs, enhancing security, and accelerating application development, cloud computing empowers organisations to harness the full potential of IoT.

As the integration of these technologies continues to advance, IoT cloud computing will remain a driving force behind innovation and global connectivity, enabling a more innovative, more interconnected future.

The value of IoT lies not just in the devices themselves but in the software applications that leverage the data generated by these devices to provide actionable insights and drive automation. These software applications are at the heart of IoT solutions and can be designed for various purposes. Let's explore the different aspects of IoT applications in detail:

1. Monitoring

Monitoring is one of the most common IoT application categories. In this use case, IoT devices (such as sensors, cameras, or smart meters) continuously collect data about the environment, processes, or systems they are designed to observe. The role of the software application is to:

Collect and aggregate data: The software interfaces with the devices to retrieve real-time data, such as temperature, humidity, energy consumption, or security status.

• Analyse the data: Visualisation tools and dashboards allow users to view trends and patterns in real time, making it easy to monitor critical metrics.
• Alert and notify: When the system detects anomalies or values that exceed predefined thresholds, the software can send alerts or notifications to stakeholders, such as technicians or facility managers.

For example, in industrial applications, IoT sensors might monitor equipment for signs of wear and tear, allowing a company to detect potential failures before they cause disruptions. In healthcare, IoT devices can continuously monitor patient vitals and send updates to doctors or hospitals for immediate action.

2. Control

Control-oriented IoT applications allow users to interact with and manage devices or systems remotely. This can include turning devices on or off, adjusting settings, or configuring them to operate in specific modes. Control applications offer the following capabilities:

• Remote Device Management: Users can remotely access devices (such as smart thermostats, lights, or machinery) to change configurations, reset them, or check their operational status.
• Automation and Scheduling: IoT devices can be controlled based on automated rules or schedules. For example, an IoT-enabled irrigation system can be set to water crops at specific times of the day based on weather conditions or soil moisture levels.
• Access Control: In security systems, IoT devices such as smart locks or cameras can be controlled to allow or deny access to a specific location. Users can lock/unlock doors remotely or view live feeds to ensure security.

For example, IoT applications might control lighting, heating, and even security systems in a smart home from a central interface like a smartphone app.

3. Automation

Automation is one of the most transformative aspects of IoT applications. By automating processes based on real-time data, IoT can eliminate the need for manual intervention and optimise systems for greater efficiency. Key functions of IoT automation applications include:

• Smart Decision-Making: Automation is driven by data insights. For instance, an IoT-enabled HVAC system can automatically adjust the temperature based on the number of people in a room or the outside weather.
• Process Optimisation: IoT sensors may monitor machine performance in manufacturing and trigger automated actions, such as switching production lines or adjusting settings for energy savings. This ensures optimal performance without requiring human oversight.
• Predictive Automation: Leveraging advanced analytics and machine learning, IoT systems can predict future trends or events, triggering automatic actions. For example, a smart fridge might reorder items when it detects that supplies are running low or based on usage patterns.

In agriculture, IoT-enabled irrigation systems can automatically adjust water flow based on soil moisture readings, ensuring that crops receive optimal care without human input.

4. Data-Driven Insights

One of the most significant advantages of IoT applications is their ability to extract valuable insights from the vast amounts of data generated by devices. These insights can inform business decisions, optimise operations, and improve outcomes across various sectors. Key capabilities of data-driven IoT applications include:

• Data Analytics: IoT applications often incorporate advanced analytics tools that process and analyse data to generate insights. This can include historical trend analysis, predictive analytics, and anomaly detection.
• Reporting: The data collected can be presented in comprehensive reports, giving users a detailed view of system performance or activity. This is especially useful for management or decision-makers who rely on actionable insights to make informed choices.
• Machine Learning and AI: Many IoT systems incorporate machine learning algorithms that allow the system to learn from the data over time, improving its ability to predict future events or optimise performance automatically.

IoT data can track vehicle performance, predict maintenance needs, and enhance fuel efficiency in the automotive industry. Similarly, in the energy sector, IoT applications help to analyse consumption patterns and make adjustments that improve energy efficiency and reduce costs.

5. Security and Privacy

IoT applications also play a critical role in securing IoT devices and the data they generate. As the number of connected devices increases, ensuring the privacy and security of sensitive information is essential. IoT security applications focus on:

• Device Authentication: Ensuring that devices accessing the network are authorised and cannot be tampered with.

Data Encryption: Securing data both in transit and at rest to prevent unauthorised access or breaches.

• Real-time Monitoring: Constantly monitoring the health and security of IoT devices and systems to detect and respond to potential threats.

For example, in a smart home, an IoT security system could monitor unauthorised access attempts and alert homeowners while enabling remote surveillance.

6. Integration with Other Systems
Many IoT applications are not standalone but integrate with other systems or platforms to enhance functionality. These integrations span various sectors, including enterprise resource planning (ERP), customer relationship management (CRM), and cloud platforms. Some common integrations include:

• ERP Systems: In manufacturing, IoT data can feed into an ERP system, automatically updating inventory levels, tracking production progress, and informing supply chain decisions.
• Cloud Computing: Many IoT applications rely on cloud infrastructure to store and analyse large datasets, providing scalability and reducing the need for on-premise hardware.
• Third-Party Services: IoT applications often integrate with third-party platforms, enabling additional capabilities such as weather forecasting, supply chain logistics, or data analytics.

For example, in smart cities, IoT applications integrate with traffic management systems, environmental sensors, and city services, enabling more efficient and responsive urban management.

The true value of IoT applications lies in their ability to convert raw data from connected devices into actionable insights, drive automation, and improve decision-making. Whether for monitoring, control, or automation, IoT applications are revolutionising industries by improving efficiency, reducing costs, and enhancing user experiences. As IoT technology evolves, the potential for even more advanced, intelligent, and integrated applications will only grow, further embedding IoT into our daily lives and business operations.

As the number of IoT devices grows, the need for robust security measures becomes even more critical. Protecting the sensitive data collected by these devices from unauthorised access, tampering, or misuse is paramount to ensure the integrity and privacy of users and organisations. Thus, network security systems should be considered when designing IoT networks and systems to ensure they're secure by design.

Security in IoT Networks:
Security within IoT networks is a multifaceted concern, as IoT devices often operate in decentralised and dynamic environments. These devices communicate through wireless networks, making them vulnerable to various cyberattacks. Given that IoT systems are frequently connected to the cloud or other external networks, vulnerabilities in one device can expose the entire network to risks. Hence, strong security protocols are essential for data protection in these networks.

Key Security Measures

• Encryption: Encryption is one of the most fundamental techniques used to protect data transmitted across IoT networks. It ensures that even if malicious actors intercept data, it remains unreadable without the appropriate decryption key. Both data at rest (stored data) and data in transit (data being transmitted) can be encrypted. IoT devices often use advanced encryption standards (AES), Transport Layer Security (TLS), or Secure Socket Layer (SSL) protocols to safeguard the communication between devices and the cloud or other endpoints. This makes it difficult for attackers to gain meaningful access to sensitive data.
• Authentication: Authentication verifies the identity of both the devices and the users interacting with the IoT network. With IoT systems often comprising many different types of devices, each with varying levels of capabilities, ensuring that only legitimate devices can join the network is critical. Authentication mechanisms can include device certificates, biometrics, and multi-factor authentication (MFA) for users. Device authentication ensures that only authorised devices can communicate within the network, reducing the risk of a rogue or compromised device gaining access to sensitive information.
• Authorisation: Once authenticated, the authorisation process dictates what actions a device or user can perform within the network. Authorisation systems define roles and permissions, ensuring that devices only have access to data and resources necessary for their function. For example, a smart thermostat may be authorised to adjust temperature settings but not to access user data stored in the cloud. This limits the potential impact of a compromised device by preventing it from performing unauthorised actions that could lead to data breaches or system failures.
• Data Integrity: Ensuring data integrity involves preventing unauthorised data alteration. Integrity measures like hash functions or digital signatures verify that the data sent from one device to another has not been tampered with. This is essential in IoT networks where real-time data is constantly being exchanged, as any modification in this data can result in inaccurate readings, malicious activities, or faulty system behaviour.
• Intrusion Detection and Prevention Systems (IDPS): IoT networks are prone to cyberattacks, such as denial-of-service (DoS) attacks, malware, or unauthorised access attempts. Intrusion detection systems (IDS) and intrusion prevention systems (IPS) are critical in identifying and blocking suspicious activities in real-time. These systems monitor the network for unusual behaviour patterns or unauthorised actions and respond promptly to mitigate potential threats before they can cause harm.
• Firmware and Software Updates: Keeping devices' firmware and software up to date is essential to IoT security. Security vulnerabilities can be discovered in IoT devices over time. If these devices are not regularly updated with patches or new software versions, they can become easy targets for attackers. Many IoT devices now include features allowing remote updates, ensuring the system remains protected against newly discovered threats.
• Secure Network Architecture: The design of the IoT network itself plays a crucial role in security. Segmentation of the network can limit the scope of damage if a device is compromised. By creating isolated segments, IoT networks can minimise the impact of a breach, preventing attackers from moving laterally across the entire system. In addition, virtual private networks (VPNs) and private communication channels can enhance security further, protecting communication between devices and their control centres.
• Physical Security: Physical security is also an essential aspect of IoT device protection besides cyber threats. Devices located in publicly accessible places or vulnerable environments can be tampered with or stolen, leading to a loss of control or data misuse. Protecting IoT devices physically through tamper-resistant hardware, secure storage solutions, and proper disposal methods ensures that attackers cannot quickly gain unauthorised access by physically compromising a device.
• Challenges in IoT Security: While these security measures are critical, implementing them in IoT networks presents several challenges. Many IoT devices have limited computational power and storage, making implementing complex encryption or authentication mechanisms difficult. Additionally, the sheer volume of IoT devices increases the attack surface, making monitoring and responding to every threat more challenging. Moreover, the rapid pace of IoT innovation and the frequent introduction of new devices and technologies can lead to inconsistent security practices across the industry, leaving gaps that attackers can exploit.

Securing IoT networks requires a comprehensive, multi-layered approach that addresses various security aspects. By implementing measures like encryption, authentication, authorisation, and regular software updates, organisations can significantly reduce the risk of data breaches and unauthorised access to IoT systems. While IoT security presents significant challenges, these challenges can be mitigated with careful planning, robust protocols, and a proactive security strategy.
