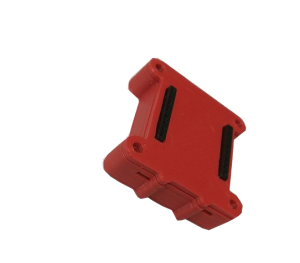

Controller module
The controller module is a low-cost Wi-Fi chip with full TCP/IP stack and MCU (microcontroller unit) capability. This small module allows microcontrollers to connect to a Wi-Fi network and make simple TCP/IP connections using Hayes-style commands. Controller can be connected with Micro USB connection or with WIFI connection.
Specifications
- 11 digital input/output pins
- Micro USB connector
- Compatible with ArduinoIDE
- Compatible with nodemc
- 4 MB flash-memory
Electrical connection
Modules are using following I/O ports
- RGB LED Shield GPIO4
- Relay Shield GPIO5
- OLED Display Shield GPIO4, GPIO5
- Motor Shield GPIO4, GPIO5
- Temperature/Humidity DHT Pro Shield GPIO2
- Sensor Shield (ITT ver. 1.1) GPIO4, GPIO5, GPIO6, GPIO7, A0
