Läbipääsusüsteem
Meeskond
- Vitali Lopatnjuk
- Ivan Podkhomutnikov
Lähteülesanne
susteem mis võimaldab läbipääsu kasutades RFID (Raadiosagedustuvastus) tehnoloogiat.
Süsteemi kirjeldus
Süsteem on ehitatud ATmega128 AVR kontrolleri baasil. Kontrolleri külge on ühendatud 2×16-kohaline LCD ekraan ja RFID-lugeja. Süsteemi juhtivad kaks programmi. Üks neist jookseb kontrolleri peal, teine arvutil kus asub ka süsteemi andmebaas. Programmid suhtlevad omavahel RS232 liidese kaudu.

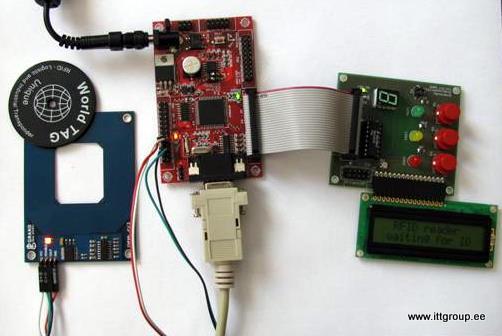

Riistvara kokkupanduna
Algorütmid
Allpool on toodud mõlema programmi tööalgorütmid.

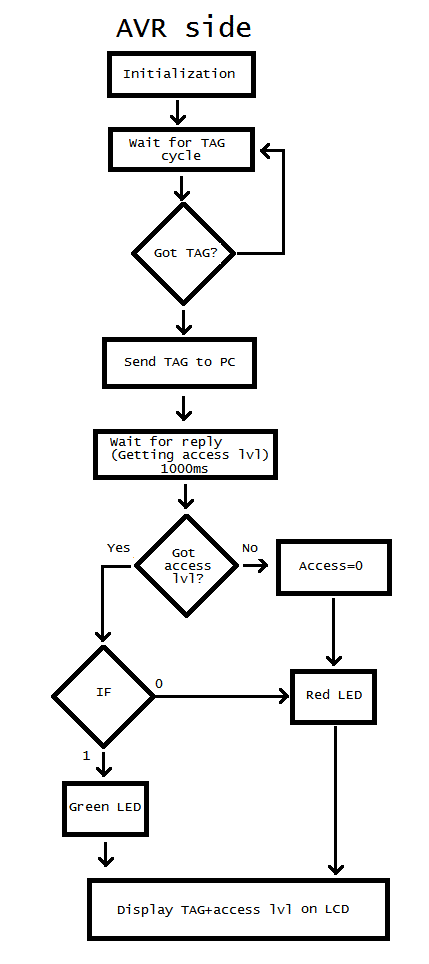

Kontrolleri poole algorütm

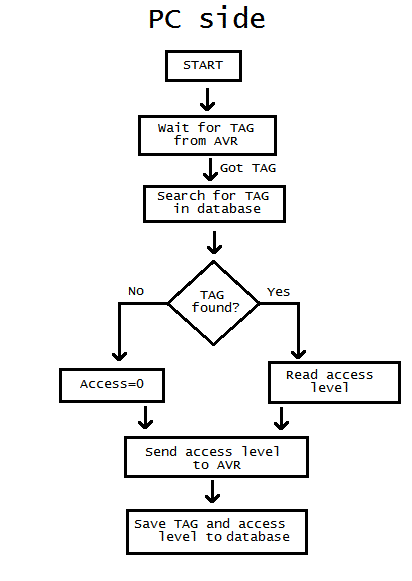

Arvuti poole algorütm
Tarkvara
Kontrolleri poole tarkvara
rfid.c
// RFID reader with Interstudy ATmegal28 board // Reader pins : Enable - PD3, Serout - PD2 (RXD1) // Reads and displays ID // Includes #include <avr/io.h> #include <util/delay.h> #include <homelab/usart.h> #include "lcd.h" #include "pin.h" // Configuration #define RFID_BAUDRATE 2400 #define RFID_BAUD_VALUE (((F_CPU / (RFID_BAUDRATE * 16UL))) - 1) #define RFID_ENABLE PORTPIN(D, 3) #define RFID_RX PORTPIN(D, 2) #define LED_GREEN PORTPIN(C, 3) #define LED_RED PORTPIN(C, 5) #define LED_YELLOW PORTPIN(C, 4) #define LED_DEBUG PORTPIN(B, 7) // // Определение USART интерфейса // usart port = USART(0); // // Display initialization // void display_init(void) { lcd_init(LCD_DISP_ON); lcd_clrscr(); lcd_puts(" RFID reader\n waiting for ID"); } char read_access() { // Access char c; // Wait for character int nMaxIter = 10; bool bResult = false; while( bResult == false ) { bResult = usart_try_read_char( port, &c ); // Wait for reply some time, but not forever --nMaxIter; _delay_ms(100); if( nMaxIter <= 0 ) break; } // Got result if( bResult == false ) { c = '0'; } return c; } // // Write ID on display // void display_write_id(char *id, char c) { lcd_gotoxy(0, 0); lcd_puts("ID: "); lcd_puts(id); lcd_gotoxy(0, 1); lcd_puts("Access: "); lcd_gotoxy(8, 1); // Обозначение знака непосредственно на экране lcd_alpha_write_char(c); } // // UART configuring // void uart_setup() { // Setup serial interface SET_BIT(UCSR1B, RXEN); // Activate RX only SET_BIT(UCSR1C, UCSZ0); // 8 data bits, 1 stop bit, no parity SET_BIT(UCSR1C, UCSZ1); // Set baud rate UBRR1L = (RFID_BAUD_VALUE & 0xFF); UBRR1H = (RFID_BAUD_VALUE >> 8); } // // Wait for UART incoming data // void uart_wait_rx() { while (!IS_BIT_SET(UCSR1A, RXC)) { } } // // Read UART data // inline unsigned char uart_read() { return UDR1; } // // RFID interface initialization // void rfid_init(void) { // Setup UART uart_setup(); // Setup enable and RX pin pin_setup_output(RFID_ENABLE); pin_setup_input(RFID_RX); } void usart_init(void) { // Настройка USART интерфейса usart_init_async(port, USART_DATABITS_8, USART_STOPBITS_ONE, USART_PARITY_NONE, USART_BAUDRATE_ASYNC(9600)); } // // RFID ID reading // void rfid_read_id(char *id) { enum States { BEGIN, DATA, END } state = BEGIN; unsigned char data; unsigned char digits = 0; // Enable RFID with low signal pin_clear(RFID_ENABLE); // Cycle until tag ID received while (1) { // Wait for data uart_wait_rx(); data = uart_read(); // Toggle debug indicator pin_toggle(LED_DEBUG); // What's present state and what's next ? switch (state) { // Begin state - we expect start byte (0x0A) case BEGIN: // Got the start ? if (data == 0x0A) { state = DATA; // Disable RFID pin_set(RFID_ENABLE); } break; // Data state - we expect 10 bytes of ID case DATA: // Fill ID string id[digits++] = data; // All digits arrived ? if (digits == 10) state = END; break; // End state - we expect end byte (0x0D) case END: // Got the end ? if (data == 0x0D) { // Terminate the string id[digits] = '\0'; // Сказать компьютеру привет usart_send_string(port, id); // All done - return return; } // Any other case - restart else { state = BEGIN; // Enable RFID with low signal pin_clear(RFID_ENABLE); } break; } } } // // Main function // int main(void) { char id[11]; // Initialization display_init(); rfid_init(); usart_init(); // Setup indicator pins pin_setup_output(LED_GREEN); pin_setup_output(LED_RED); pin_setup_output(LED_YELLOW); pin_setup_output(LED_DEBUG); // Turn off green LED pin_set(LED_GREEN); pin_set(LED_RED); pin_set(LED_YELLOW); // Endless loop while (1) { // Read RFID tag ID rfid_read_id(id); // Turn off green LED pin_set(LED_GREEN); pin_set(LED_RED); pin_clear(LED_YELLOW); char c = read_access(); // Display ID display_write_id(id, c); // Light green LED if( c == '0' ) { pin_clear(LED_RED); } else { pin_clear(LED_GREEN); } // Delay for next try _delay_ms(5000); pin_set(LED_YELLOW); pin_set(LED_GREEN); pin_set(LED_RED); } }

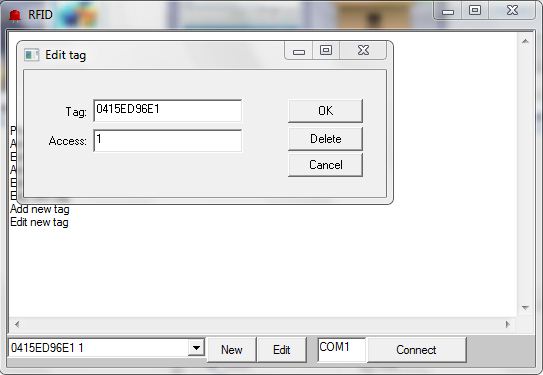

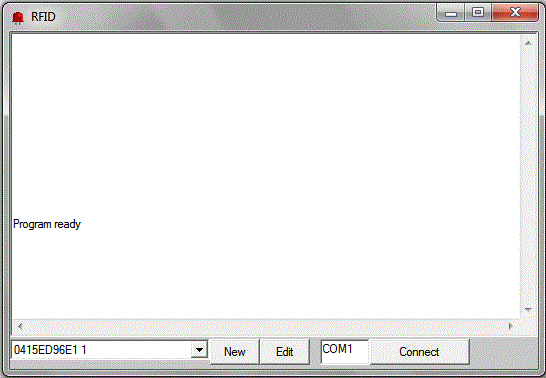

Arvuti tarkvara
main.c
// ############################################################################ #include <stdlib.h> #include <stdio.h> #include <windows.h> #include <windef.h> #define BTN_NEW 100 #define BTN_EDIT 101 #define BTN_CONNECT 102 #define IDD_NEW 200 #define IDC_STC1 201 #define IDC_STC2 202 #define IDC_TAG 203 #define IDC_ACCESS 204 #define IDD_EDIT 1000 #define IDC_ACCESS2 1001 #define IDC_TAG2 1002 #define IDC_STC3 1003 #define IDC_STC4 1004 #define IDC_DELETE 1007 /* Declare Windows procedure */ LRESULT CALLBACK WindowProcedure (HWND, UINT, WPARAM, LPARAM); /* Make the class name into a global variable */ char szClassName[ ] = "WindowsApp"; char *dbFile = "rfid.txt"; char *logFile = "rfid.log"; #define LOG_LINES 15 #define LOG_COLUMNS 200 char logline[LOG_LINES][LOG_COLUMNS]; size_t logpos = 0; char bConnected = 0; // ############################################################################ HMODULE hInst; HANDLE hCom, hThread; HWND hLog, hComPort; HWND hNew, hEdit, hConnect; HWND hCombo; // ############################################################################ // Переменные которые хранят данные из диалогов New и Edit char szTag[500]; char szAccess[500]; // ############################################################################ int WINAPI WinMain (HINSTANCE hThisInstance, HINSTANCE hPrevInstance, LPSTR lpszArgument, int nFunsterStil) { HWND hwnd; /* This is the handle for our window */ MSG messages; /* Here messages to the application are saved */ WNDCLASSEX wincl; /* Data structure for the windowclass */ /* The Window structure */ wincl.hInstance = hThisInstance; wincl.lpszClassName = szClassName; wincl.lpfnWndProc = WindowProcedure; /* This function is called by windows */ wincl.style = CS_DBLCLKS; /* Catch double-clicks */ wincl.cbSize = sizeof (WNDCLASSEX); /* Use default icon and mouse-pointer */ wincl.hIcon = LoadIcon(hThisInstance, 500); //LoadIcon (NULL, IDI_APPLICATION); wincl.hIconSm = LoadIcon(hThisInstance, 500);//LoadIcon (NULL, IDI_APPLICATION); wincl.hCursor = LoadCursor (NULL, IDC_ARROW); wincl.lpszMenuName = NULL; /* No menu */ wincl.cbClsExtra = 0; /* No extra bytes after the window class */ wincl.cbWndExtra = 0; /* structure or the window instance */ /* Use Windows's default color as the background of the window */ wincl.hbrBackground = (HBRUSH) COLOR_BACKGROUND; /* Register the window class, and if it fails quit the program */ if (!RegisterClassEx (&wincl)) return 0; /* The class is registered, let's create the program*/ hwnd = CreateWindowEx ( 0, /* Extended possibilites for variation */ szClassName, /* Classname */ "RFID", /* Title Text */ WS_OVERLAPPEDWINDOW, /* default window */ CW_USEDEFAULT, /* Windows decides the position */ CW_USEDEFAULT, /* where the window ends up on the screen */ 544, /* The programs width */ 375, /* and height in pixels */ HWND_DESKTOP, /* The window is a child-window to desktop */ NULL, /* No menu */ hThisInstance, /* Program Instance handler */ NULL /* No Window Creation data */ ); /* Make the window visible on the screen */ ShowWindow (hwnd, nFunsterStil); /* Run the message loop. It will run until GetMessage() returns 0 */ while (GetMessage (&messages, NULL, 0, 0)) { /* Translate virtual-key messages into character messages */ TranslateMessage(&messages); /* Send message to WindowProcedure */ DispatchMessage(&messages); } /* The program return-value is 0 - The value that PostQuitMessage() gave */ return messages.wParam; } // ############################################################################ char check_id( char *id ) { size_t nIdLen = strlen(id); int nCount = SendMessage( hCombo, CB_GETCOUNT, 0, 0 ); int i; for( i = 0; i < nCount; i++ ) { char lpItem[500]; SendMessage( hCombo, CB_GETLBTEXT, i, (int) &lpItem ); if( strncmp( lpItem, id, nIdLen ) == 0 ) { return lpItem[nIdLen+1]; } } return 0; } // ############################################################################ char logz( char *lpData, DWORD nSize ) { // Open a handle to the specified com port. HANDLE hFile = CreateFile( logFile, GENERIC_READ | GENERIC_WRITE, 0, // must be opened with exclusive-access NULL, // default security attributes OPEN_ALWAYS, // must use 0, // not overlapped I/O NULL ); // hTemplate must be NULL for comm devices if(hFile == INVALID_HANDLE_VALUE) { // Handle the error. printf("CreateFile failed with error %d. File %s\n", GetLastError(), logFile); return 0; } // The starting point is the current end-of-file position. SetFilePointer( hFile, 0, 0, FILE_END ); if( nSize == 0 ) nSize = strlen( lpData ); DWORD nNumberOfBytesToWrite; WriteFile( hFile, lpData, nSize, &nNumberOfBytesToWrite, 0 ); // End of file CloseHandle( hFile ); // Add string to logline strncpy( &logline[logpos][0], lpData, LOG_COLUMNS - 1 ); logpos++; if( logpos >= LOG_LINES ) logpos = 0; // Make a log for text box char *lpResult = malloc( LOG_COLUMNS * LOG_LINES ); *lpResult = 0; int i = 0; for( i = logpos; i < LOG_LINES; i++ ) { strcat( lpResult, &logline[i][0] ); strcat( lpResult, "\r\n" ); } for( i = 0; i < logpos; i++ ) { strcat( lpResult, &logline[i][0] ); strcat( lpResult, "\r\n" ); } SendMessage( hLog, WM_SETTEXT, 0, (int) lpResult ); free( lpResult ); return 1; } // ############################################################################ logzf( char *lpData, ... ) { char buffer[LOG_COLUMNS]; va_list args; va_start (args, lpData); vsprintf (buffer,lpData, args); //perror (buffer); logz( buffer, strlen(buffer) ); va_end (args); } // ############################################################################ void read_file() { DWORD lpNumberOfBytesRead; // Open a handle to the specified com port. HANDLE hDB = CreateFile( dbFile, GENERIC_READ | GENERIC_WRITE, 0, // must be opened with exclusive-access NULL, // default security attributes OPEN_EXISTING, // must use OPEN_EXISTING 0, // not overlapped I/O NULL ); // hTemplate must be NULL for comm devices if(hDB == INVALID_HANDLE_VALUE) { // Handle the error. logzf("CreateFile failed with error %d. File %s\n", GetLastError(), dbFile); MessageBox( 0, "Could not load key file", "Error", MB_OK ); return; } // Read to memory size_t nSize = GetFileSize( hDB, 0 ); char *lpBuffer = (char *) malloc( nSize + 1 ); ReadFile( hDB, lpBuffer, nSize, &lpNumberOfBytesRead, 0 ); lpBuffer[lpNumberOfBytesRead] = 0; // End of file CloseHandle( hDB ); // Compare ids int i = 0; char *lpstart = lpBuffer; outer_loop: while( lpBuffer[i] ) { if( lpBuffer[i] == 0 ) { break; } if( lpBuffer[i] == '\r' ) { lpBuffer[i] = 0; //MessageBox( 0, lpstart, "info", MB_OK ); if( *lpstart != '\r' && *lpstart != 0 ) { SendMessage( hCombo, CB_ADDSTRING, 0, (int) lpstart ); } lpstart = &lpBuffer[i + 1]; } i++; } free( lpBuffer ); return; } // ############################################################################ void write_file() { DWORD lpNumberOfBytesWritten; // Open a handle to the specified com port. FILE *pFile = fopen( dbFile, "w+" ); if(pFile == 0) { // Handle the error. logzf("CreateFile failed with error %d. File %s\n", GetLastError(), dbFile); MessageBox( 0, "Could not load key file", "Error", MB_OK ); return; } int nCount = SendMessage( hCombo, CB_GETCOUNT, 0, 0 ); int i; for( i = 0; i < nCount; i++ ) { char lpItem[500]; SendMessage( hCombo, CB_GETLBTEXT, i, (int) &lpItem ); //MessageBox( 0, lpItem, "Error", MB_OK ); //WriteFile( dbFile, &lpItem, strlen(lpItem), &lpNumberOfBytesWritten, 0 ); //WriteFile( dbFile, "\r", 1, &lpNumberOfBytesWritten, 0 ); fwrite( &lpItem, strlen(lpItem), 1, pFile ); fwrite( "\r", 1, 1, pFile ); } //WriteFile( dbFile, "\r", 1, &lpNumberOfBytesWritten, 0 ); fwrite( "\r", 1, 1, pFile ); //CloseHandle( hDB ); fclose( pFile ); } // ############################################################################ BOOL CALLBACK NewDlgProc(HWND hwnd, UINT Message, WPARAM wParam, LPARAM lParam) { switch(Message) { case WM_INITDIALOG: { return TRUE; } case WM_COMMAND: { switch(LOWORD(wParam)) { case IDOK: { GetDlgItemText(hwnd, IDC_TAG, szTag, sizeof(szTag)); GetDlgItemText(hwnd, IDC_ACCESS, szAccess, sizeof(szAccess)); EndDialog(hwnd, IDOK); break; } case IDCANCEL: { EndDialog(hwnd, IDCANCEL); break; } } break; } default: { return FALSE; } } return TRUE; } // ############################################################################ BOOL CALLBACK EditDlgProc(HWND hwnd, UINT Message, WPARAM wParam, LPARAM lParam) { switch(Message) { case WM_INITDIALOG: { SetDlgItemText(hwnd, IDC_TAG2, szTag); SetDlgItemText(hwnd, IDC_ACCESS2, szAccess); return TRUE; } case WM_COMMAND: { switch(LOWORD(wParam)) { case IDOK: { GetDlgItemText(hwnd, IDC_TAG2, szTag, sizeof(szTag)); GetDlgItemText(hwnd, IDC_ACCESS2, szAccess, sizeof(szAccess)); EndDialog(hwnd, IDOK); break; } case IDC_DELETE: { EndDialog(hwnd, IDC_DELETE); break; } case IDCANCEL: { EndDialog(hwnd, IDCANCEL); break; } } break; } default: { return FALSE; } } return TRUE; } // ############################################################################ void PrintCommState(DCB dcb) { // Print some of the DCB structure values logzf( "BaudRate = %d, ByteSize = %d, Parity = %d, StopBits = %d", dcb.BaudRate, dcb.ByteSize, dcb.Parity, dcb.StopBits ); } DWORD WINAPI read_com( LPVOID lpParam ) { // Read data char lpBuffer[200]; DWORD lpNumberOfBytesRead; while( ReadFile(hCom, lpBuffer, sizeof(lpBuffer), &lpNumberOfBytesRead, 0) ) { lpBuffer[lpNumberOfBytesRead] = 0; char id = check_id(lpBuffer); // Send to AVR DWORD nNumberOfBytesToWrite; WriteFile( hCom, &id, 1, &nNumberOfBytesToWrite, 0 ); char szTime[100]; GetTimeFormat( 0, 0, NULL, "HH':'mm':'ss", szTime, sizeof(szTime) ); char szDate[100]; GetDateFormat( 0, 0, NULL, "dd'.'MM'.'yyyy", szDate, sizeof(szDate) ); // Log logzf( "[%s %s] ID: %s, Access: %c", szDate, szTime, lpBuffer, id ); } logzf("ReadFile fail."); ExitThread( 0 ); return 0; } char connect_com() { DCB dcb; //HANDLE hCom; BOOL fSuccess; char pcCommPort[30]; // Most systems have a COM1 port GetWindowTextA( hComPort, pcCommPort, sizeof(pcCommPort) ); // Open a handle to the specified com port. hCom = CreateFile( pcCommPort, GENERIC_READ | GENERIC_WRITE, 0, // must be opened with exclusive-access NULL, // default security attributes OPEN_EXISTING, // must use OPEN_EXISTING 0, // not overlapped I/O NULL ); // hTemplate must be NULL for comm devices if(hCom == INVALID_HANDLE_VALUE) { // Handle the error. logzf( "CreateFile failed with error %d.", GetLastError()); return 0; } // Initialize the DCB structure. ZeroMemory(&dcb, sizeof(DCB)); dcb.DCBlength = sizeof(DCB); // Build on the current configuration by first retrieving all current // settings. fSuccess = GetCommState(hCom, &dcb); if (!fSuccess) { // Handle the error. logzf("GetCommState failed with error %d.", GetLastError()); return 0; } PrintCommState(dcb); // Output to console // Fill in some DCB values and set the com state: // 57,600 bps, 8 data bits, no parity, and 1 stop bit. dcb.BaudRate = CBR_9600; // baud rate dcb.ByteSize = 8; // data size, xmit and rcv dcb.Parity = NOPARITY; // parity bit dcb.StopBits = ONESTOPBIT; // stop bit fSuccess = SetCommState(hCom, &dcb); if (!fSuccess) { // Handle the error. logzf("SetCommState failed with error %d.", GetLastError()); return 0; } // Get the comm config again. fSuccess = GetCommState(hCom, &dcb); if (!fSuccess) { // Handle the error. logzf("GetCommState failed with error %d.", GetLastError()); return 0; } PrintCommState(dcb); // Output to console hThread = CreateThread( NULL, 0, read_com, 0, 0, NULL ); logzf( "Connected to port %s", pcCommPort ); return 1; } char disconnect_com() { TerminateThread( hThread, 0 ); CloseHandle( hCom ); logzf( "COM port disconnected" ); return 0; } // ############################################################################ /* This function is called by the Windows function DispatchMessage() */ LRESULT CALLBACK WindowProcedure (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam) { switch (message) /* handle the messages */ { case WM_CREATE: { hInst = GetModuleHandle(NULL); hLog = CreateWindowEx(WS_EX_CLIENTEDGE, "EDIT", "", WS_CHILD | WS_VISIBLE | WS_VSCROLL | WS_HSCROLL | ES_MULTILINE | ES_AUTOVSCROLL | ES_AUTOHSCROLL, 0, 0, 100, 100, hwnd, 0, hInst, NULL); hComPort = CreateWindowEx(WS_EX_CLIENTEDGE, "EDIT", "COM1", WS_CHILD | WS_VISIBLE, 0, 0, 100, 100, hwnd, 0, hInst, NULL); hCombo = CreateWindow("COMBOBOX", "ComboBox", WS_CHILD | WS_VISIBLE | CBS_SORT | CBS_DROPDOWNLIST, 10, 50, 250, 20, hwnd, 0, hInst, 0); hNew = CreateWindow("BUTTON", "New", BS_PUSHBUTTON | WS_CHILD | WS_VISIBLE, 140, 70, 100, 25, hwnd, (HMENU) BTN_NEW, hInst, 0); hEdit = CreateWindow("BUTTON", "Edit", BS_PUSHBUTTON | WS_CHILD | WS_VISIBLE, 140, 70, 100, 25, hwnd, (HMENU) BTN_EDIT, hInst, 0); hConnect = CreateWindow("BUTTON", "Connect", BS_PUSHBUTTON | WS_CHILD | WS_VISIBLE, 140, 70, 100, 25, hwnd, (HMENU) BTN_CONNECT, hInst, 0); HFONT hfDefault = GetStockObject(DEFAULT_GUI_FONT); SendMessage(hLog, WM_SETFONT, (WPARAM)hfDefault, MAKELPARAM(FALSE, 0)); SendMessage(hNew, WM_SETFONT, (WPARAM)hfDefault, MAKELPARAM(FALSE, 0)); SendMessage(hEdit, WM_SETFONT, (WPARAM)hfDefault, MAKELPARAM(FALSE, 0)); SendMessage(hConnect, WM_SETFONT, (WPARAM)hfDefault, MAKELPARAM(FALSE, 0)); SendMessage(hComPort, WM_SETFONT, (WPARAM)hfDefault, MAKELPARAM(FALSE, 0)); SendMessage(hCombo, WM_SETFONT, (WPARAM)hfDefault, MAKELPARAM(FALSE, 0)); read_file(); SendMessage( hCombo, CB_SETCURSEL, 0, 0 ); logz( "Program ready", 13 ); break; } case WM_COMMAND: switch(wParam) { case BTN_NEW: { logz( "Add new tag", 11 ); int ret = DialogBox(GetModuleHandle(NULL), MAKEINTRESOURCE(IDD_NEW), hwnd, NewDlgProc); if(ret != IDOK) { break; } // Добавление нового RFID char szTemp[500]; snprintf( szTemp, sizeof(szTemp), "%s %s", szTag, szAccess ); int nCur = SendMessage( hCombo, CB_ADDSTRING, 0, (int) szTemp ); SendMessage( hCombo, CB_SETCURSEL, nCur, 0 ); write_file(); break; } case BTN_EDIT: { logz( "Edit new tag", 12 ); int nCur = SendMessage( hCombo, CB_GETCURSEL, 0, 0 ); SendMessage( hCombo, CB_GETLBTEXT, nCur, (int) &szTag ); // Разделение RFID-тега и уровня доступа char *lpSpace = strrchr( szTag, ' ' ); *lpSpace = 0; strcpy( szAccess, &lpSpace[1] ); int ret = DialogBox(GetModuleHandle(NULL), MAKEINTRESOURCE(IDD_EDIT), hwnd, EditDlgProc); if(ret != IDOK && ret != IDC_DELETE) { break; } SendMessage( hCombo, CB_DELETESTRING, nCur, 0 ); if(ret == IDOK) { char szTemp[500]; snprintf( szTemp, sizeof(szTemp), "%s %s", szTag, szAccess ); nCur = SendMessage( hCombo, CB_ADDSTRING, 0, (int) szTemp ); SendMessage( hCombo, CB_SETCURSEL, nCur, 0 ); } else { SendMessage( hCombo, CB_SETCURSEL, 0, 0 ); } write_file(); break; } case BTN_CONNECT: { if( bConnected == 0 ) bConnected = connect_com(); else bConnected = disconnect_com(); if( bConnected == 0 ) SetWindowTextA( hConnect, "Connect" ); else SetWindowTextA( hConnect, "Disconnect" ); break; } } break; case WM_SIZE: { RECT rcClient; GetClientRect(hwnd, &rcClient); SetWindowPos(hLog, NULL, 0, 0, rcClient.right, rcClient.bottom - 32, SWP_NOZORDER); SetWindowPos(hCombo, NULL, 0, rcClient.bottom - 30, 200, 200, SWP_NOZORDER); SetWindowPos(hNew, NULL, 200, rcClient.bottom - 30, 50, 26, SWP_NOZORDER); SetWindowPos(hEdit, NULL, 200 + 50, rcClient.bottom - 30, 50, 26, SWP_NOZORDER); SetWindowPos(hComPort, NULL, 200 + 50 * 2 + 10, rcClient.bottom - 30, 50, 26, SWP_NOZORDER); SetWindowPos(hConnect, NULL, 200 + 50 * 3 + 10, rcClient.bottom - 30, 100, 26, SWP_NOZORDER); break; } case WM_DESTROY: { if( bConnected == 1 ) bConnected = disconnect_com(); // Выход. Сохранение. write_file(); PostQuitMessage (0); /* send a WM_QUIT to the message queue */ break; } default: /* for messages that we don't deal with */ { return DefWindowProc (hwnd, message, wParam, lParam); } } return 0; } // ############################################################################
Kokkuvõte ja järeldused
