Euromüntide sorteerija

• Alari Õis
• Alvar Pällo
• Mihkel Tedremaa
• Siim Haas

1. Nädal 1-2: aruanne_myndisorteerija_i.pdf
2. Nädal 2-4: aruanne_myndisorteerija_ii.pdf
3. Nädal 4-6: aruanne3_2.pdf

Luua seade, mis suudab eraldada euromünte erinevatesse topsidesse ning kuvab seejärel lcd-le kogusumma.

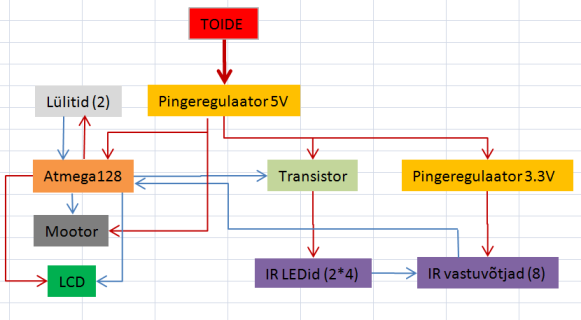

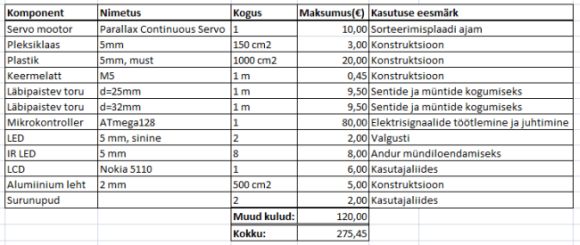

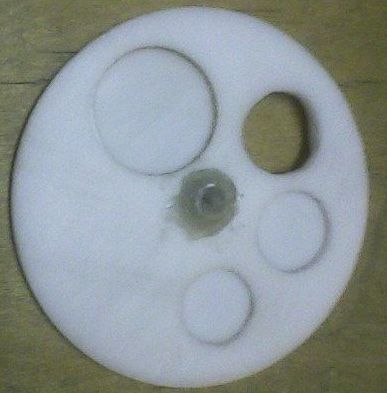

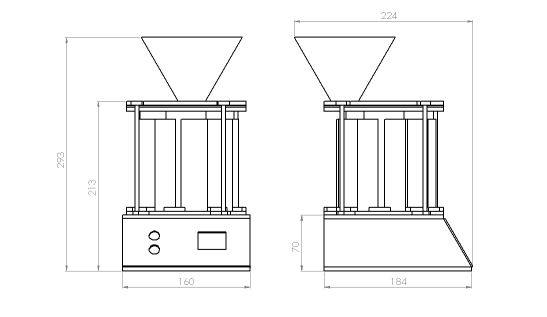

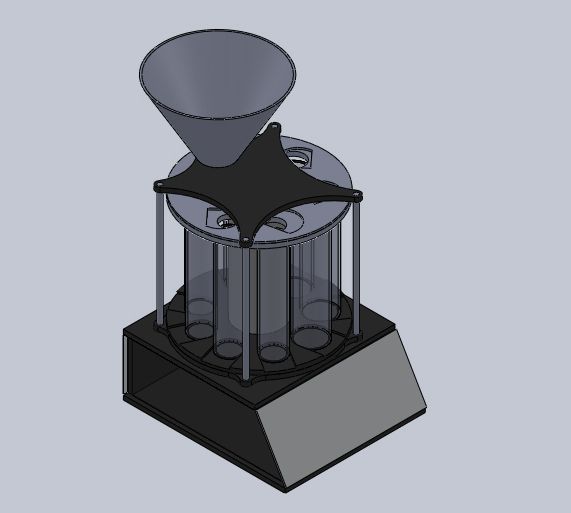

Müntide eraldamiseks otsustasime kasutada eraldusplaate, kus alumisele plaadile on puuritud euromüntide diameetritele vastavad augud ning ülemine plaat veab münte nende aukude kohal. Augud on järjestatud väiksemast suuremaks, selleks et vältida väiksemate müntide kukkumist suurematesse aukudesse.

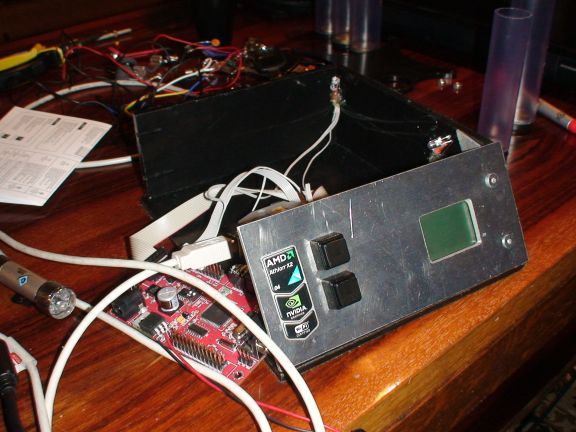

Esimene prototüüp:

int main(void)
{

	int8_t press_key_separation[3] = {1, 1, 10};
	uint16_t vilguta = 0;
	uint8_t coins[8];

	for(uint8_t i = 0; i < 8; i++) {coins[i] = 0;}

	DDRB = (1 << PB4)|(1 << PB6);
	PORTB |= (1 << PB5);

	TCCR0 = (1 << WGM01)|(1 << CS00)|(1 << COM00);
	OCR0 = 193;


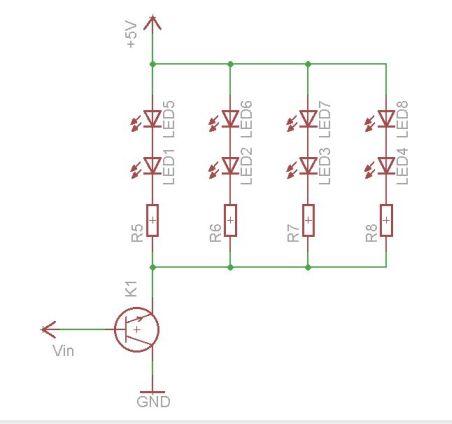

	DDRF |= (1 << PF2);//LEDid
	DDRF &= ~((1 << PF1)|(1 << PF0)); //Lülitid

	ADCSRA &= ~(1 << ADEN);

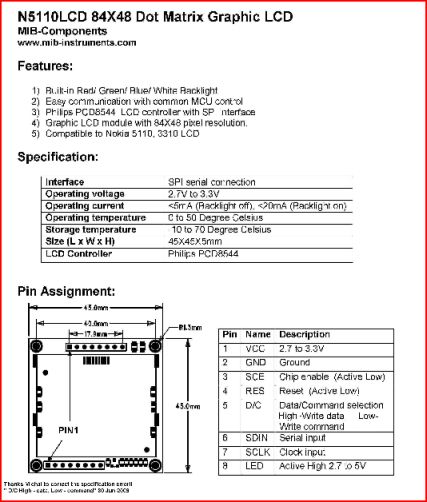

	lcd_gfx_init(); // LCD ekraani algseadistamine
	lcd_gfx_clear(); // Ekraani puhastamine
	lcd_gfx_backlight(true); // Taustavalgustuse tööle lülitamine
	lcd_clear_buffer(BUFFER);
    lcd_intro(BUFFER);

	TCCR1B = (1 << WGM13);
	TCCR1A = (1 << WGM11)|(1 << COM1A0)|(1 << COM1A1)|(1 << COM1B0)|(1 << COM1B1)|(1 << COM1C0)|(1 << COM1C1);
	OCR1B = 18471;
	ICR1 = 19820;

	sei();
	ETIMSK |= (1 << TOIE3);
	TCCR3B &= ~((1 << CS32)|(1 << CS30));

	while( !(PINF & ((1 << PF0)|(1 << PF1))))
	{
		lcd_clear_buffer_area(BUFFER, 1, 38, LCD_GFX_X_RES - 2, LCD_GFX_Y_RES - 2);
		lcd_write_string_to_buffer(BUFFER, LCD_GFX_X_RES/2, 38, "Press any key", LCD_FONT_MIDDLE, circle8(press_key_separation, -2, 5, 4));
		lcd_print_frame(BUFFER);
	}
	lcd_print_frame(background);
	while (true)
	{
		if(PINF & (1 << PF0)) {TCCR1B &= ~(1 << CS11); vilguta &= ~(1 << 15); PORTF &= ~(1 << PF2); TCCR3B |= ((1 << CS32)|(1 << CS30));}
		if(PINF & (1 << PF1)) {TCCR1B |=  (1 << CS11); vilguta |= (1 << 15); TCCR3B &= ~((1 << CS32)|(1 << CS30)); TCNT3 = 0;}
		if(vilguta & (1 << 15)) vilguta++;
		if(vilguta > LEDSAGEDUS + (1 << 15))
		{
			PORTF ^= (1 << PF2);
			vilguta = (1 << 15);
		}
		if(PINB & (1 << PB5))
		{
			lcd_clear_buffer_area(background, 31, 1, 45, 7);
			if(++coins[0] < 10)
			lcd_write_char_to_buffer(background, 31, 1, coins[0] + 48);
			else
			{
				lcd_write_char_to_buffer(background, 31, 1, coins[0]/10 + 48);
				lcd_write_char_to_buffer(background, 38, 1, coins[0]%10 + 48);
			}
			lcd_draw_horisontal_line(background, 47 - coins[0], 64, 68);
			lcd_print_frame(background);
			_delay_ms(300);
		}
	}
}
