Design Consideration for Energy Sources for IoT Devices

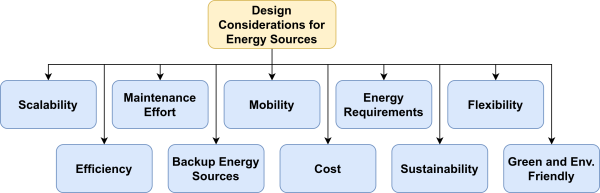

Choosing an appropriate energy source for IoT systems is critical to ensuring reliability, efficiency, and sustainability. These considerations are guided by the diverse requirements of IoT devices and their deployment scenarios. Below, we expand on key design aspects (figure 1):

1. Scalability

IoT deployments often involve a large number of devices operating in diverse environments. The energy solution must:

• Be scalable such that it can be manufactured on a large scale at a reasonable cost.
• Be capable of serving small, low-power devices and large, energy-intensive systems like gateways or servers.
• Offer modular or adaptable energy storage solutions, allowing upgrades to accommodate future device additions or higher power demands.

2. Minimum Maintenance

IoT devices are often deployed in remote or hard-to-access locations where frequent maintenance is impractical. Energy sources must:

• Require minimal or no regular maintenance, reducing operational costs.
• Be reliable for long-term usage, particularly in battery-powered devices, where recharging or replacement can be challenging.
• Leverage self-sustaining solutions such as energy harvesting from solar, thermal, or mechanical sources to extend operational lifespans and reduce the frequency of replacing the node's energy storage system, maintenance frequency and cost.

3. Mobility

For IoT applications requiring mobile devices, such as wearables, drones, or vehicle-mounted sensors, energy sources must:

• Be lightweight and compact to avoid hindering mobility.
• Ensure sufficient energy storage capacity to power devices during extended operation without recharging.
• Be rugged and resilient to withstand movement, vibration, or other dynamic conditions.

4. Energy Requirements

The energy consumption of IoT devices varies widely, depending on their purpose and workload. Key considerations include:

• Low-power devices: Sensors and simple IoT nodes require minimal power, making batteries or energy harvesting sufficient.
• Energy-hungry devices: Edge computing nodes or gateways with high processing and networking requirements need more robust and continuous power sources.
• Due to their limited capacity, devices requiring a constant power supply (e.g., critical infrastructure sensors or medical devices) may not rely solely on batteries.
• Hybrid systems combining batteries with solar or other ambient energy sources are often ideal.
• Hybrid energy storage systems can also supply stored energy to IoT devices.

5. Flexibility

IoT systems are deployed in diverse environments, from urban areas to remote, off-grid locations. Flexible energy solutions should:

• Adapt to environmental conditions (e.g., solar panels for sunny regions or RF harvesting in urban areas).
• Support hybrid energy systems that combine multiple energy sources to enhance reliability and efficiency.
• Allow for easy integration into both existing and new IoT infrastructures.

6. Efficiency

Efficient energy usage is vital to maximize device lifespans and reduce energy waste. Considerations include:

• Energy-efficient components: Use low-power processors and communication protocols to minimize energy demands.
• Energy storage systems: Batteries and capacitors must offer high energy density, low leakage, and efficient charge-discharge cycles.
• Optimize power management to match the device's active and idle states, reducing unnecessary consumption.

7. The Need for Backup Energy Sources

IoT devices must remain operational during power outages or periods when primary energy sources are unavailable. Backup considerations include:

• Incorporating energy storage systems like batteries or supercapacitors to provide temporary power.
• Designing hybrid systems with renewable energy sources (solar, wind) as backups for grid-dependent devices.
• Ensuring seamless transitions between primary and backup power sources to avoid service interruptions.

8. Minimum Cost

Cost-effectiveness is critical for large-scale IoT deployments. Energy source design must:

• Balance initial costs (e.g., solar panels or advanced batteries) with long-term savings from reduced maintenance and energy efficiency.
• Use cost-efficient materials and manufacturing techniques for batteries and energy harvesting systems.
• Optimize deployment and maintenance strategies to minimize labour and operational expenses.

9. Sustainability

Sustainable energy solutions are essential to reducing the environmental footprint of IoT systems. Considerations include:

• Using renewable energy sources like solar, wind, or hydro to power IoT devices.
• Deploying energy harvesting systems to reuse ambient energy and reduce reliance on non-renewable sources.
• Designing systems with recyclable or biodegradable materials to minimize waste.

10. Green and Environmentally Friendly

To align with green IoT principles, energy sources should:

• Minimize carbon emissions during production and operation.
• Avoid toxic materials (e.g., certain battery chemicals) that can harm the environment if not disposed of properly.
• Support eco-friendly practices, such as leveraging clean energy or reducing e-waste through longer-lasting components.

Designing energy sources for IoT systems requires a holistic approach that balances power needs, cost, efficiency, and sustainability. By addressing these considerations, developers can create reliable, scalable, and environmentally responsible IoT systems, paving the way for innovative and sustainable IoT solutions.
