VREL #6: Color Temperature and Brightness Compensation Laboratory

The laboratory is located at Silesian Technical University, Poland, Gliwice Akademicka 16, room 319.

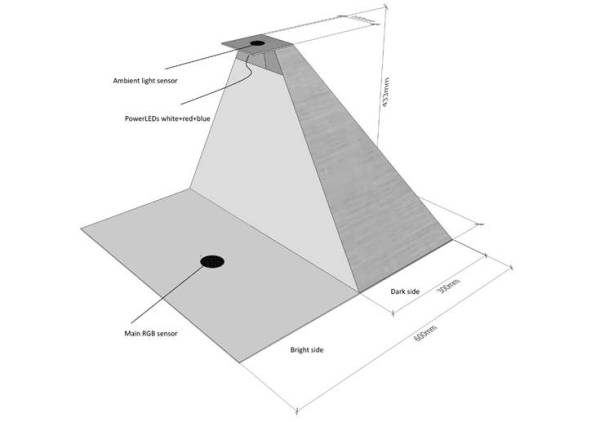

The lab consists of two light sources placed on top of the pyramid-shaped tower (figure 1). The tower is divided into two sections:

• Bright side - opened to ambient light and simultaneously illuminated by LEDs
• Dark side - only illuminated by LEDs

The user can experiment with controlling the brightness of LEDs and measuring the intensity and colour of the light.

The user needs to know:

Beginners:

• Basic knowledge of ESP8266 NodeMCU v2,
• ESP8266 Arduino programming,
• Basic knowledge of I2C Interface,
• Basic knowledge of I2C programming using Arduino I2C library,
• Knowledge of PWM controller chip PCA9685,
• Operation and method of PWM current control,

Undergraduates additionally:

• Knowledge of PWM controller chip PCA9685,
• Knowledge of I2C extender chip TCA9548A,
• Knowledge of light sensor chip TCS34725,
• Division of white light sources due to colour temperature,
• Measure of light intensity,

Masters additionally:

• Construction and operation of Cree Dynamic White LEDs,
• Knowledge of PWM controller chip PCA9685,
• Knowledge of I2C extender chip TCA9548A,
• Knowledge of light sensor chip TCS34725,
• Division of white light sources due to colour temperature,

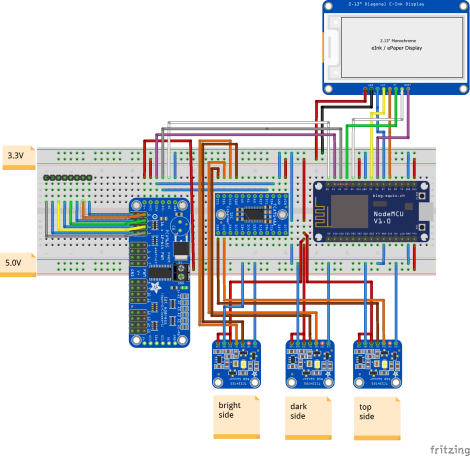

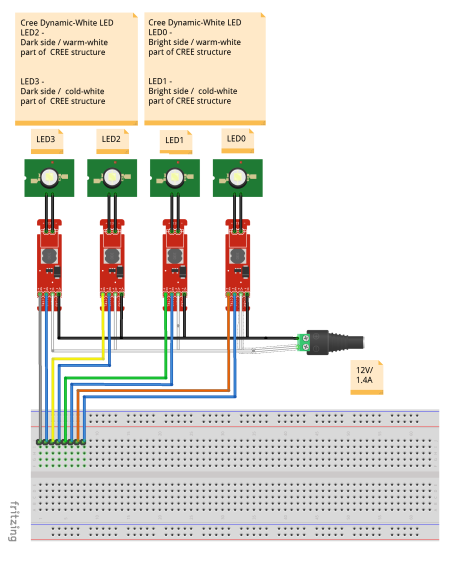

The main aim of the laboratory is to do different experiments with LED light. The user can start with simple PWM controlling of LED. Next, try to keep a constant level of brightness on a bright part of the model. The other aim is to keep the same level of lighting on a dark part of the model, as is on the bright side. The diagram of the main part is shown in figure 3, and diagram of LEDs connection is in figure 2

A camera gives a general view on the bright side of the tower, and the second camera at the bottom of the tower gives a view of how both parts of the ground are illuminated (bright and dark) ambient light and RGB sensors are used as sensors for measuring brightness and colour of light. The following devices are connected directly to the main I2C controller:

In the system, there are three TCS34725 light sensors. Sensors have the same I2C addresses (0x29h) but are connected to different channels of I2C extender (TCA9548A). I2C extender address is 0x70h.

In the system, there are two CREE dynamic LEDs. Each consists of four LED structures with two cold-white and two warm-white lightning. First LED is placed on top of the bright/openside of the tower and the second LED is placed on top of the dark/close side. The each LEDs light intensity must be appropriately controlled using PWM current controller which is separate for every white colour of each LED. ( Each PWM channel controls two LED structures with identical light colour.) As PWM controller has been used a 16-channel PWM chip - PCA9685 (Address - 0x40H). PCA9685 is connected directly to the microcontroller's I2C master interface.

; PlatformIO Project Configuration File
;
;   Build options: build flags, source filter
;   Upload options: custom upload port, speed and extra flags
;   Library options: dependencies, extra library storages
;   Advanced options: extra scripting
;
; Please visit documentation for the other options and examples
; http://docs.platformio.org/page/projectconf.html

[env:d1_mini]
platform = espressif8266
board = d1_mini
framework = arduino
lib_deps = Wire, EmonLib, Adafruit NeoPixel, Encoder,DHT sensor library,
Adafruit Unified Sensor, LCD,
PubSubClient, KS0108_PCF8574, CoAP simple library

You can connect your ESP8266 microcontroller via its integrated WiFi interface to the separated IoT network. Then you can communicate with other, already connected devices and even provide some information to the cloud. In details, there is a dedicated MQTT broker waiting for you. You can also set up your own soft Access Point and connect another node directly to yours.

The communication among the devices can be done using MQTT messages, exchanging data among other nodes (M2M) and you can even push them to the Internet.

Using your Node, you can access it and publish/subscribe to the messages once you connect your ESP to the existing wireless network (this network does not provide access to the global internet and is separated but please note there are other developers and IoT nodes connected to this access point:

• SSID: internal.IOT
• Passkey: IoTlab32768
• Setup your microcontroller for DHCP, to automatically obtain an IP address, your ESP will obtain the address from the 192.168.90.X pool.
• MQTT server is available under the fixed address: 192.168.90.5, and the credentials to publish/subscribe are:
  • User: vrel
  • Password: vrel2018

At the same time, only one user can be programming the controller, although analysing the signal by others (unlimited number) the user has sense. Model is provided to work continuously, without service breaks.

In case of problems contact: jaroslaw.paduch@polsl.pl
