Sensor module
Sensor module is a combination of included sensors and low-pass filter.
Sensor module is equipped with:
- Ultrasonic sensor SRF04/SRF05 with cable (distance 3 cm - 300 cm)
- Infrared sensor SHARP with cable (distance 20 cm - 150 cm)
- Light dependent sensor (Photo resistor)
- Temperature sensor (Thermistor NTC)
- Potentiometer
Connecting module

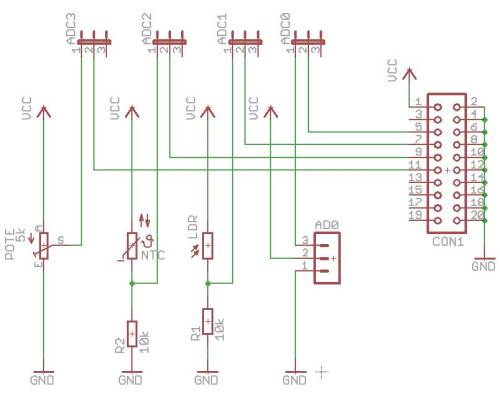

Connection schema:
Testing
Integrated test program for sensors (requires Digital i/o board): digiandurimootoriplaadi_test_v05.hex
